ecstasy::thread::SharedRecursiveMutex Class Reference

Wrapper for std::shared_mutex allowing recursive locking by the same thread. More...

#include <SharedRecursiveMutex.hpp>

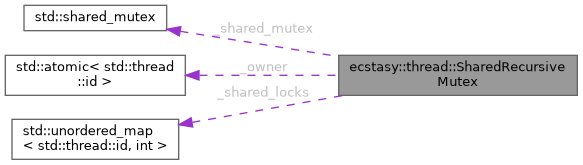

Collaboration diagram for ecstasy::thread::SharedRecursiveMutex:

Public Member Functions
	SharedRecursiveMutex ()=default
	Construct a new Shared Recursive Mutex.
	~SharedRecursiveMutex ()=default
	Destroy the Shared Recursive Mutex.
void	lock ()
	Lock the mutex with exclusive access.
void	lock_shared () const
	Lock the mutex with shared access.
void	lock () const
	Lock the mutex with shared access.
void	unlock ()
	Unlock the mutex locked with exclusive access.
void	unlock_shared () const
	Unlock the mutex locked with shared access.
void	unlock () const
	Unlock the mutex locked with shared access.
constexpr const std::shared_mutex &	get_shared_mutex (void) noexcept
	Get the internal mutex.
constexpr int	get_lock_count (void) const noexcept
	Get the number of recursive locks held by the current thread.
int	get_shared_lock_count (void) const noexcept
	Get the number of recursive shared locks held by the current thread.
constexpr const std::atomic< std::thread::id > &	get_owner (void) const noexcept
	Get the owner of the mutex.

Private Member Functions
bool	has_shared_lock (void) const noexcept

Private Attributes
std::shared_mutex	_shared_mutex
	Internal shared mutex.
std::atomic< std::thread::id >	_owner
	Owner of the mutex.
int	_lock_count
	Lock count.
std::unordered_map< std::thread::id, int >	_shared_locks
	Shared lock count.

Detailed Description

Wrapper for std::shared_mutex allowing recursive locking by the same thread.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-02)

Definition at line 28 of file SharedRecursiveMutex.hpp.

Constructor & Destructor Documentation

SharedRecursiveMutex()

ecstasy::thread::SharedRecursiveMutex::SharedRecursiveMutex ( )

default

Construct a new Shared Recursive Mutex.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-02)

~SharedRecursiveMutex()

ecstasy::thread::SharedRecursiveMutex::~SharedRecursiveMutex ( )

default

Destroy the Shared Recursive Mutex.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-02)

Member Function Documentation

get_lock_count()

constexpr int ecstasy::thread::SharedRecursiveMutex::get_lock_count ( void  ) const

inlineconstexprnoexcept

Get the number of recursive locks held by the current thread.

Note

0 means the mutex is not locked by the current thread (or at least not in exclusive).

Warning

This value is not thread-safe and should only be used for debugging purposes.

Returns

constexpr int number of recursive locks held by the current thread.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-02)

Definition at line 132 of file SharedRecursiveMutex.hpp.

        {
            return _lock_count;
        }

get_owner()

constexpr const std::atomic< std::thread::id > & ecstasy::thread::SharedRecursiveMutex::get_owner ( void  ) const

inlineconstexprnoexcept

Get the owner of the mutex.

Note

If the mutex is not locked, the owner is std::thread::id().

This value is thread safe.

Returns

constexpr const std::atomic<std::thread::id>& owner of the mutex.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-02)

Definition at line 166 of file SharedRecursiveMutex.hpp.

        {
            return _owner;
        }

get_shared_lock_count()

int ecstasy::thread::SharedRecursiveMutex::get_shared_lock_count ( void  ) const

noexcept

Get the number of recursive shared locks held by the current thread.

Note

0 means the mutex has no shared lock held by the current thread. The shared lock count is also incremented by 1 when the mutex is locked exclusively (only once) to keep track of the shared lock count before/within an exclusive lock to unset them during the exclusive lock and reset them after. Therefore the real count of shared locks is the return value minus 1 if the owner is not null (std::thread::id()).

Warning

This value is exposed for debugging purposes, you should not rely on it for your locks, use the lock/unlock methods instead.

Returns

constexpr int number of recursive shared locks held by the current thread.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-20)

Definition at line 82 of file SharedRecursiveMutex.cpp.

    {
        // Better than handling exceptions
        if (has_shared_lock())
            return _shared_locks.at(std::this_thread::get_id());
        else
            return 0;
    }

get_shared_mutex()

constexpr const std::shared_mutex & ecstasy::thread::SharedRecursiveMutex::get_shared_mutex ( void  )

inlineconstexprnoexcept

Get the internal mutex.

Returns

constexpr const std::shared_mutex & internal mutex.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-02)

Definition at line 116 of file SharedRecursiveMutex.hpp.

        {
            return _shared_mutex;
        }

has_shared_lock()

bool ecstasy::thread::SharedRecursiveMutex::has_shared_lock ( void  ) const

privatenoexcept

Definition at line 91 of file SharedRecursiveMutex.cpp.

    {
        return const_cast<const std::unordered_map<std::thread::id, int> &>(_shared_locks)
                   .find(std::this_thread::get_id())
            != _shared_locks.cend();
    }

lock() [1/2]

void ecstasy::thread::SharedRecursiveMutex::lock

(

void

)

Lock the mutex with exclusive access.

Note

Waits until the mutex is available for exclusive access. (ie no shared or exclusive lock held by other threads)

If the lock is already acquired, only increment the lock count.

If the mutex has a shared lock held by the current thread, it will be upgraded to an exclusive lock and downgraded after unlock. For example : lock_shared(); lock(); unlock(); unlock_shared();

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-02)

Definition at line 16 of file SharedRecursiveMutex.cpp.

    {
        std::thread::id this_id = std::this_thread::get_id();

        if (_owner == this_id) {
            // recursive locking
            _lock_count++;
        } else {
            // Unlock the shared lock if any
            if (get_shared_lock_count() > 0) {
                _shared_mutex.unlock_shared();
                // Add a count to avoid the unlock_shared() to be called before the unlock()
                // While the thread has exclusive lock, there is no real shared_lock, therefore calling unlock_shared()
                // would cause an error
                ++_shared_locks[this_id];
            }
            // normal locking
            _shared_mutex.lock();
            _owner = this_id;
            _lock_count = 1;
        }
    }

lock() [2/2]

void ecstasy::thread::SharedRecursiveMutex::lock ( ) const

inline

Lock the mutex with shared access.

Definition at line 75 of file SharedRecursiveMutex.hpp.

        {
            lock_shared();
        }

lock_shared()

void ecstasy::thread::SharedRecursiveMutex::lock_shared

(

void

)

const

Lock the mutex with shared access.

Note

If the shared lock is already acquired, only increment the lock count.

If the mutex has an exclusive lock held by the current thread, the shared lock request will be "stored" and applied after exclusive unlock if unlock_shared was not called before. For example: lock(); lock_shared(); unlock(); unlock_shared();

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-02)

Definition at line 39 of file SharedRecursiveMutex.cpp.

    {
        std::thread::id this_id = std::this_thread::get_id();
        // Increment the shared lock count for this thread
        int &shared_lock_count = ++_shared_locks[this_id];

        // If it is the first shared lock, the count is set to 1 by incrementing the 0 default initialized value
        if (shared_lock_count == 1) {
            if (_owner != this_id)
                _shared_mutex.lock_shared();
            else
                ++shared_lock_count;
        }
    }

unlock() [1/2]

void ecstasy::thread::SharedRecursiveMutex::unlock

(

void

)

Unlock the mutex locked with exclusive access.

Note

Decrement the lock count and unlock the mutex if the new lock count is 0.

If the mutex had shared locks held by the current thread before lock (and not unlocked until now), they will be re enabled.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-02)

Definition at line 54 of file SharedRecursiveMutex.cpp.

    {
        if (_lock_count > 1) {
            // recursive unlocking
            _lock_count--;
        } else {
            // normal unlocking
            _owner = std::thread::id();
            _lock_count = 0;
            _shared_mutex.unlock();
            // Apply the remaining shared locks that were made before/inside the exclusive lock
            if (get_shared_lock_count() > 0) {
                // Remove the count added in lock() and call remaininc lock_shared()
                if (--_shared_locks[std::this_thread::get_id()] > 0)
                    _shared_mutex.lock_shared();
            }
        }
    }

unlock() [2/2]

void ecstasy::thread::SharedRecursiveMutex::unlock ( ) const

inline

Unlock the mutex locked with shared access.

Definition at line 103 of file SharedRecursiveMutex.hpp.

        {
            unlock_shared();
        }

unlock_shared()

void ecstasy::thread::SharedRecursiveMutex::unlock_shared

(

void

)

const

Unlock the mutex locked with shared access.

Note

Decrement the shared lock count and unlock the mutex if the new lock count is 0.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-02)

Definition at line 73 of file SharedRecursiveMutex.cpp.

    {
        int &_shared_lock_count = --_shared_locks.at(std::this_thread::get_id());

        // If it was the last shared lock, unlock the shared mutex
        if (_shared_lock_count == 0)
            _shared_mutex.unlock_shared();
    }

Member Data Documentation

_lock_count

int ecstasy::thread::SharedRecursiveMutex::_lock_count

private

Lock count.

Definition at line 187 of file SharedRecursiveMutex.hpp.

_owner

std::atomic<std::thread::id> ecstasy::thread::SharedRecursiveMutex::_owner

private

Owner of the mutex.

Definition at line 185 of file SharedRecursiveMutex.hpp.

_shared_locks

std::unordered_map<std::thread::id, int> ecstasy::thread::SharedRecursiveMutex::_shared_locks

mutableprivate

Shared lock count.

Definition at line 189 of file SharedRecursiveMutex.hpp.

_shared_mutex

std::shared_mutex ecstasy::thread::SharedRecursiveMutex::_shared_mutex

mutableprivate

Internal shared mutex.

Definition at line 183 of file SharedRecursiveMutex.hpp.

---

The documentation for this class was generated from the following files:

• src/ecstasy/thread/SharedRecursiveMutex.hpp
• src/ecstasy/thread/SharedRecursiveMutex.cpp
