ecstasy::AStorage< C > Class Template Reference

Abstract class for all components storage. More...

#include <AStorage.hpp>

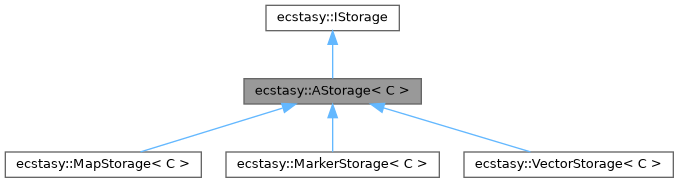

Inheritance diagram for ecstasy::AStorage< C >:

Collaboration diagram for ecstasy::AStorage< C >:

Public Types
using	Component = C
	IsStorage constraint.
using	QueryData = C &
	QueryableObject constraint.
using	ConstQueryData = const C &
	ConstQueryableObject constraint.

Public Member Functions
virtual bool	erase (Entity::Index index)=0
	Erase the Component instance associated to the given entity.
void	erase (std::span< Entity > entities) override final
	Erase multiple Component instances associated to the given entities.
bool	contains (Entity::Index index) const noexcept override final
	Test if the entity index match a Component instance.
Component &	at (Entity::Index index)
	Retrieve the Component instance associated to the given entity and perform bound checking.
const Component &	at (Entity::Index index) const
	Retrieve the Component instance associated to the given entity and perform bound checking.
virtual Component &	operator[] (Entity::Index index)=0
	Retrieve the Component instance associated to the given entity.
QueryData	getQueryData (Entity::Index index)
	Retrieve the Component instance associated to the given entity.
virtual const Component &	operator[] (Entity::Index index) const =0
	Retrieve the const Component instance associated to the given entity.
ConstQueryData	getQueryData (Entity::Index index) const
	Retrieve the Component instance associated to the given entity.
const std::type_info &	getComponentTypeInfos () const noexcept override final
	Get the Component stored type infos.
virtual Component &	insert (Entity::Index index, Component &&c)=0
	Insert a new Component instance associated to the given entity.
Public Member Functions inherited from ecstasy::IStorage
virtual	~IStorage ()=default
virtual constexpr const util::BitSet &	getMask () const noexcept=0
	Get the Component Mask.
virtual void	erase (std::span< Entity > entities)=0
	Erase the components attached to the given entities.
virtual bool	contains (size_t index) const noexcept=0
	Test if the entity index match a Component instance.
virtual const std::type_info &	getComponentTypeInfos () const noexcept=0
	Get the Component stored type infos.

Detailed Description

template<typename C>
class ecstasy::AStorage< C >

Abstract class for all components storage.

Template Parameters

C	Component type.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-23)

Definition at line 34 of file AStorage.hpp.

Member Typedef Documentation

Component

template<typename C >

using ecstasy::AStorage< C >::Component = C

IsStorage constraint.

Definition at line 37 of file AStorage.hpp.

ConstQueryData

template<typename C >

using ecstasy::AStorage< C >::ConstQueryData = const C &

ConstQueryableObject constraint.

Definition at line 42 of file AStorage.hpp.

QueryData

template<typename C >

using ecstasy::AStorage< C >::QueryData = C &

QueryableObject constraint.

Definition at line 40 of file AStorage.hpp.

Member Function Documentation

at() [1/2]

template<typename C >

Component & ecstasy::AStorage< C >::at ( Entity::Index  index )

inline

Retrieve the Component instance associated to the given entity and perform bound checking.

Parameters

[in]

index

Index of the entity.

Returns

QueryData Reference to the associated component.

Exceptions

std::out_of_range

If the entity doesn't have the component.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-23)

Definition at line 94 of file AStorage.hpp.

        {
            if (!contains(index)) [[unlikely]]
                throw std::out_of_range("Entity doesn't have the component");
            return (*this)[index];
        }

at() [2/2]

template<typename C >

const Component & ecstasy::AStorage< C >::at ( Entity::Index  index ) const

inline

Retrieve the Component instance associated to the given entity and perform bound checking.

Parameters

[in]

index

Index of the entity.

Returns

QueryData Reference to the associated component.

Exceptions

std::out_of_range

If the entity doesn't have the component.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-04-23)

Definition at line 113 of file AStorage.hpp.

        {
            if (!contains(index)) [[unlikely]]
                throw std::out_of_range("Entity doesn't have the component");
            return (*this)[index];
        }

contains()

template<typename C >

bool ecstasy::AStorage< C >::contains ( Entity::Index  index ) const

inlinefinaloverridevirtualnoexcept

Test if the entity index match a Component instance.

Parameters

[in]

index

Index of the entity.

Returns

bool True if the entity has a component, false otherwise.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2022-10-19)

Implements ecstasy::IStorage.

Definition at line 77 of file AStorage.hpp.

        {
            return (index < getMask().size()) && getMask()[index];
        }

erase() [1/2]

template<typename C >

virtual bool ecstasy::AStorage< C >::erase ( Entity::Index  index )

pure virtual

Erase the Component instance associated to the given entity.

Note

Does nothing if the index doesn't match with any component (ie if the entity doesn't have a component Component)

Parameters

[in]

index

Index of the entity.

Returns

bool True if the component was erased, false otherwise.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2022-10-19)

Implemented in ecstasy::MapStorage< C >, ecstasy::MarkerStorage< C >, and ecstasy::VectorStorage< C >.

erase() [2/2]

template<typename C >

void ecstasy::AStorage< C >::erase ( std::span< Entity >  entities )

inlinefinaloverridevirtual

Erase multiple Component instances associated to the given entities.

Note

Does nothing for entity without attached component (ie if the entity doesn't have a component Component)

Parameters

[in]

entities

target entities.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2022-10-21)

Implements ecstasy::IStorage.

Definition at line 70 of file AStorage.hpp.

        {
            for (Entity entity : entities)
                erase(entity.getIndex());
        }

getComponentTypeInfos()

template<typename C >

const std::type_info & ecstasy::AStorage< C >::getComponentTypeInfos ( ) const

inlinefinaloverridevirtualnoexcept

Get the Component stored type infos.

Returns

const std::type_info& Type informations of the component stored in the storage.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-06-11)

Implements ecstasy::IStorage.

Definition at line 167 of file AStorage.hpp.

        {
            return typeid(Component);
        }

getQueryData() [1/2]

template<typename C >

QueryData ecstasy::AStorage< C >::getQueryData ( Entity::Index  index )

inline

Retrieve the Component instance associated to the given entity.

Warning

This function may not perform bound checking. For VectorStorage or MarkerStorage it is noexcept but not for MapStorage for example.

Parameters

[in]

index

Index of the entity.

Returns

Component& Reference to the associated component.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2022-10-19)

Note

QueryableObject constraint.

Definition at line 138 of file AStorage.hpp.

        {
            return (*this)[index];
        };

getQueryData() [2/2]

template<typename C >

ConstQueryData ecstasy::AStorage< C >::getQueryData ( Entity::Index  index ) const

inline

Retrieve the Component instance associated to the given entity.

Warning

This function may not perform bound checking. For VectorStorage or MarkerStorage it is noexcept but not for MapStorage for example.

Parameters

[in]

index

Index of the entity.

Returns

Component& Reference to the associated component.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2022-10-19)

Note

ConstQueryableObject constraint.

Definition at line 161 of file AStorage.hpp.

        {
            return (*this)[index];
        };

insert()

template<typename C >

virtual Component & ecstasy::AStorage< C >::insert ( Entity::Index  index, Component &&  c  )

pure virtual

Insert a new Component instance associated to the given entity.

Parameters

[in]	index	Index of the entity.
[in]	c	Component instance to insert.

Returns

Component& Reference to the inserted component.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2024-06-25)

Implemented in ecstasy::MapStorage< C >, ecstasy::MarkerStorage< C >, and ecstasy::VectorStorage< C >.

operator[]() [1/2]

template<typename C >

virtual const Component & ecstasy::AStorage< C >::operator[] ( Entity::Index  index ) const

pure virtual

Retrieve the const Component instance associated to the given entity.

Warning

This function may not perform bound checking. For VectorStorage or MarkerStorage it is noexcept but not for MapStorage for example.

Parameters

[in]

index

Index of the entity.

Returns

const Component& Const reference to the associated component.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2022-10-19)

Implemented in ecstasy::MarkerStorage< C >, ecstasy::VectorStorage< C >, and ecstasy::MapStorage< C >.

operator[]() [2/2]

template<typename C >

virtual Component & ecstasy::AStorage< C >::operator[] ( Entity::Index  index )

pure virtual

Retrieve the Component instance associated to the given entity.

Warning

This function may not perform bound checking. For VectorStorage or MarkerStorage it is noexcept but not for MapStorage for example.

Parameters

[in]

index

Index of the entity.

Returns

Component& Reference to the associated component.

Author

Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since

1.0.0 (2022-10-19)

Implemented in ecstasy::MarkerStorage< C >, ecstasy::VectorStorage< C >, and ecstasy::MapStorage< C >.

---

The documentation for this class was generated from the following file:

• src/ecstasy/storages/AStorage.hpp
