Linear vector to store entity components. More...

#include <VectorStorage.hpp>

Inheritance diagram for ecstasy::VectorStorage< C >:

[legend]

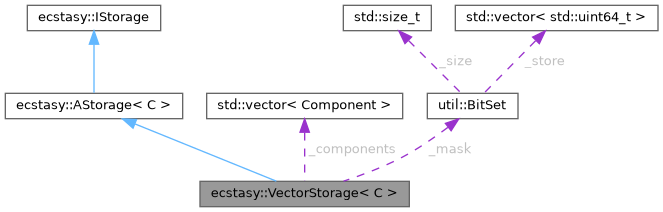

Collaboration diagram for ecstasy::VectorStorage< C >:

[legend]

Public Types
using	Component = typename AStorage< C >::Component
	IsStorage constraint.

Public Types inherited from ecstasy::AStorage< C >
using	Component = C
	IsStorage constraint.

using	QueryData = C &
	QueryableObject constraint.

using	ConstQueryData = const C &
	ConstQueryableObject constraint.

Public Member Functions
	VectorStorage (size_t initialCapacity=0)
	Construct a new Vector Storage for a given Component type.

	VectorStorage (const VectorStorage &other)=delete
	Copy constructor is deleted.

template<typename... Args>
Component &	emplace (Entity::Index index, Args &&...args)
	Emplace a new Component instance for a given entity.

Component &	insert (Entity::Index index, Component &&c) override final
	Insert a new Component instance associated to the given entity.

bool	erase (Entity::Index index) override final
	Erase the Component instance associated to the given entity.

Component &	operator[] (Entity::Index index) noexcept override final
	Retrieve the Component instance associated to the given entity.

const Component &	operator[] (Entity::Index index) const noexcept override final
	Retrieve the Component instance associated to the given entity.

constexpr const util::BitSet &	getMask () const noexcept override final
	Get the Component Mask.

Public Member Functions inherited from ecstasy::AStorage< C >
virtual bool	erase (Entity::Index index)=0
	Erase the Component instance associated to the given entity.

void	erase (std::span< Entity > entities) override final
	Erase multiple Component instances associated to the given `entities`.

bool	contains (Entity::Index index) const noexcept override final
	Test if the entity index match a Component instance.

Component &	at (Entity::Index index)
	Retrieve the Component instance associated to the given entity and perform bound checking.

const Component &	at (Entity::Index index) const
	Retrieve the Component instance associated to the given entity and perform bound checking.

virtual Component &	operator[] (Entity::Index index)=0
	Retrieve the Component instance associated to the given entity.

QueryData	getQueryData (Entity::Index index)
	Retrieve the Component instance associated to the given entity.

virtual const Component &	operator[] (Entity::Index index) const =0
	Retrieve the const Component instance associated to the given entity.

ConstQueryData	getQueryData (Entity::Index index) const
	Retrieve the Component instance associated to the given entity.

const std::type_info &	getComponentTypeInfos () const noexcept override final
	Get the Component stored type infos.

virtual Component &	insert (Entity::Index index, Component &&c)=0
	Insert a new Component instance associated to the given entity.

Public Member Functions inherited from ecstasy::IStorage
virtual	~IStorage ()=default

virtual constexpr const util::BitSet &	getMask () const noexcept=0
	Get the Component Mask.

virtual void	erase (std::span< Entity > entities)=0
	Erase the components attached to the given entities.

virtual bool	contains (size_t index) const noexcept=0
	Test if the entity index match a Component instance.

virtual const std::type_info &	getComponentTypeInfos () const noexcept=0
	Get the Component stored type infos.

Private Attributes
std::vector< Component >	_components
	Components vector.

util::BitSet	_mask
	Mask to know if a component is set for an entity.

Friends
class	VectorStorageTest

Detailed Description

template<typename C>
class ecstasy::VectorStorage< C >

Linear vector to store entity components.

Recommended for dense components. (ie. components that are attached to all entities)

Note: This storage is not recommended for sparse components as it will waste memory.

Warning: Requires default constructible (for the padding elements) and movable components (including move assignement operator).

Template Parameters

C	Component type.

Author: Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since: 1.0.0 (2022-10-19)

Definition at line 35 of file VectorStorage.hpp.

Member Typedef Documentation

◆ Component

template<typename C >

using ecstasy::VectorStorage< C >::Component = typename AStorage<C>::Component

IsStorage constraint.

Definition at line 38 of file VectorStorage.hpp.

Constructor & Destructor Documentation

◆ VectorStorage() [1/2]

template<typename C >

ecstasy::VectorStorage< C >::VectorStorage ( size_t initialCapacity = 0 )

inline

Construct a new Vector Storage for a given Component type.

Parameters

[in] initialCapacity Initial capacity of the storage.

Author: Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since: 1.0.0 (2022-10-19)

Definition at line 48 of file VectorStorage.hpp.

                                                  : _components(), _mask()
        {
            if (initialCapacity) {
                _components.reserve(initialCapacity);
                _mask.resize(initialCapacity);
            }
        };

◆ VectorStorage() [2/2]

template<typename C >

ecstasy::VectorStorage< C >::VectorStorage ( const VectorStorage< C > & other )

delete

Copy constructor is deleted.

Parameters

[in] other Storage to copy.

Author: Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since: 1.0.0 (2022-10-19)

Member Function Documentation

◆ emplace()

template<typename C >

template<typename... Args>

Component & ecstasy::VectorStorage< C >::emplace	(	Entity::Index	index,
		Args &&...	args
	)

inline

Emplace a new Component instance for a given entity.

Note: Overwrite the previous component if any.

Warning: This method may resize the internal vector, which will probably invalidate references to the components.

Template Parameters

Args	Type of the arguments to forward to the component constructor.

Parameters

[in]	index	Entity index.
[in]	args	Args to forward to the component constructor.

Returns: Component& Newly created component.

Author: Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since: 1.0.0 (2022-10-19)

Definition at line 84 of file VectorStorage.hpp.

        {
            // Component at index already existing
            if (_components.size() > index)
                _components[index] = std::move(Component(std::forward<Args>(args)...));
            else {
                _mask.resize(std::max(_mask.size(), index + 1));
                // Padding elements
                if (_components.size() < index)
                    _components.resize(index);
                // New component
                _components.emplace_back(std::forward<Args>(args)...);
            }
            _mask[index] = true;
            return _components[index];
        }

◆ erase()

template<typename C >

bool ecstasy::VectorStorage< C >::erase ( Entity::Index index )

inlinefinaloverridevirtual

Erase the Component instance associated to the given entity.

Note: Does nothing if the index doesn't match with any component (ie if the entity doesn't have a component Component)

Parameters

[in] index Index of the entity.

Returns: bool True if the component was erased, false otherwise.

Author: Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since: 1.0.0 (2022-10-19)

Note: Unset the flag in the mask but effectively delete the component only if it's the last one. Otherwise, it becomes a padding element.

Implements ecstasy::AStorage< C >.

Definition at line 127 of file VectorStorage.hpp.

        {
            if (index >= _components.size()) [[unlikely]]
                return false;
            size_t effectiveSize;

            _mask[index] = false;
            effectiveSize = _mask.lastSet() + 1;

            // Last component, we can safely remove it and the padding elements until the last set bit
            // The size is never lower than 1 because 0 is returned if no bit is set (unsigned number)
            if (effectiveSize < _mask.size()) {
                _mask.resize(effectiveSize);
                _components.resize(effectiveSize);
            }
            return true;
        }

◆ getMask()

template<typename C >

constexpr const util::BitSet & ecstasy::VectorStorage< C >::getMask ( ) const

inlineconstexprfinaloverridevirtualnoexcept

Get the Component Mask.

Note: Each bit set to true mean the entity at the bit index has a component in the storage.

Warning: The mask might be smaller than the entity count.

Returns: const util::BitSet& Component mask.

Author: Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since: 1.0.0 (2022-10-20)

Implements ecstasy::IStorage.

Definition at line 158 of file VectorStorage.hpp.

        {
            return _mask;
        }

◆ insert()

template<typename C >

Component & ecstasy::VectorStorage< C >::insert	(	Entity::Index	index,
		Component &&	c
	)

inlinefinaloverridevirtual

Insert a new Component instance associated to the given entity.

Parameters

[in]	index	Index of the entity.
[in]	c	Component instance to insert.

Returns: Component& Reference to the inserted component.

Author: Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since: 1.0.0 (2024-06-25)

Implements ecstasy::AStorage< C >.

Definition at line 102 of file VectorStorage.hpp.

        {
            if constexpr (!std::movable<Component>)
                throw std::runtime_error("VectorStorage: Component is not movable");
            else {
                // Component at index already existing
                if (_components.size() > index)
                    _components[index] = std::move(c);
                else {
                    _mask.resize(std::max(_mask.size(), index + 1));
                    // Padding elements
                    if (_components.size() < index)
                        _components.resize(index);
                    // New component
                    _components.push_back(std::move(c));
                }
                _mask[index] = true;
                return _components[index];
            }
        }

◆ operator[]() [1/2]

template<typename C >

const Component & ecstasy::VectorStorage< C >::operator[] ( Entity::Index index ) const

inlinefinaloverridevirtualnoexcept

Retrieve the Component instance associated to the given entity.

Warning: This function may not perform bound checking. For VectorStorage or MarkerStorage it is noexcept but not for MapStorage for example.

Parameters

[in] index Index of the entity.

Returns: Component& Reference to the associated component.

Author: Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since: 1.0.0 (2022-10-19)

Implements ecstasy::AStorage< C >.

Definition at line 152 of file VectorStorage.hpp.

        {
            return _components[index];
        }

◆ operator[]() [2/2]

template<typename C >

Component & ecstasy::VectorStorage< C >::operator[] ( Entity::Index index )

inlinefinaloverridevirtualnoexcept

Retrieve the Component instance associated to the given entity.

Warning: This function may not perform bound checking. For VectorStorage or MarkerStorage it is noexcept but not for MapStorage for example.

Parameters

[in] index Index of the entity.

Returns: Component& Reference to the associated component.

Author: Andréas Leroux (andre.nosp@m.as.l.nosp@m.eroux.nosp@m.@epi.nosp@m.tech..nosp@m.eu)

Since: 1.0.0 (2022-10-19)

Implements ecstasy::AStorage< C >.

Definition at line 146 of file VectorStorage.hpp.

        {
            return _components[index];
        }

Friends And Related Symbol Documentation

◆ VectorStorageTest

template<typename C >

friend class VectorStorageTest

friend

Definition at line 169 of file VectorStorage.hpp.

Member Data Documentation

◆ _components

template<typename C >

std::vector<Component> ecstasy::VectorStorage< C >::_components

private

Components vector.

Definition at line 165 of file VectorStorage.hpp.

◆ _mask

template<typename C >

util::BitSet ecstasy::VectorStorage< C >::_mask

private

Mask to know if a component is set for an entity.

Definition at line 167 of file VectorStorage.hpp.

The documentation for this class was generated from the following file:

src/ecstasy/storages/VectorStorage.hpp

Public Types

Public Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Component

Constructor & Destructor Documentation

◆ VectorStorage() [1/2]

◆ VectorStorage() [2/2]

Member Function Documentation

◆ emplace()

◆ erase()

◆ getMask()

◆ insert()

◆ operator[]() [1/2]

◆ operator[]() [2/2]

Friends And Related Symbol Documentation

◆ VectorStorageTest

Member Data Documentation

◆ _components

◆ _mask
